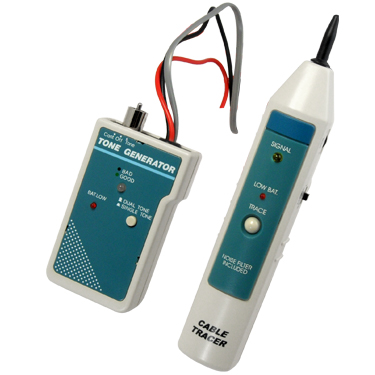

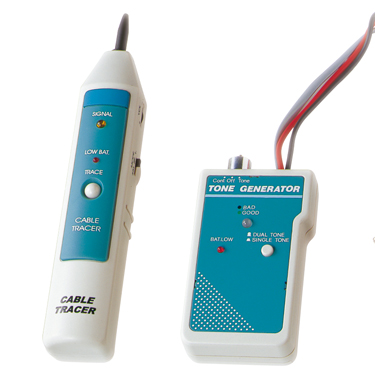

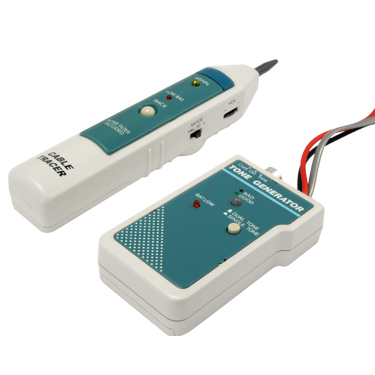

The Tone Generator is a highly practical network installation and trouble–shooting tool, wjich features a single or multi–tone signal, two test leads and a 4–conductor modular cable. The signal, emitted by the Tone Generator can be easily traced by the Probe, even when cables are in a bundle or hidden in a mess of punch down blocks or wall plates. The Tone Generator & Probe can be used to verify cable continuity, identify wring faults, determine line polarity and voltage in network and modular telephone line.

The Probe is equipped with a tone amplifier and an LED indictor that detects audible frequency tones for accurate tracing and identifiction of wires. It’s plastic conductive tip prevents shorting of expensive telecom and network eqipment.

• 2 position button for single tone or dual–tone signal

• Toggle switch to control 3 modes of operation

• 3 color LED indicator display for telephone line polarity, continuity and voltage testing

• Black and red Alligator clips and standard RJ-11 plug to test individual wire or RJ-11 jack

• Special inductive plastic tip, which prevents accidental shorts when using near high voltage devices

• Traces and identifies wires or cable in a bundle or group without damaging cable insulation

• Adjustable volume level for various work environments

• Compatibe with all existing tone generators in the market

• Power switch to prevent battery drain

Model No.: 256711A

Output power: 5V

Voltage protection:

Tone frequency:

Power supply and life: 9 Volt DC power battery

Auto power off: One 3 position toggle switch for operation modes control

Dimension: 115 x 63 x 26mm

Weight: 190g

Model No.: 256712A

Tone detection:

Power supply and life: 9 Volt DC power battery

Power switch: Manual power on/off switch

Dimensions: 205 x 35 x 33.5mm

Weight: 100g
