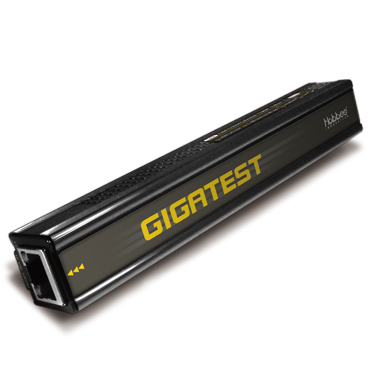

GIGATEST LAN Tester is an innovative compact network test equipment in the market that constructs several pioneering features that make on–site cabling and analysis for network construction easy and efficient. It is a well designed LAN network testers assist in the installation and control of networks

For the network cabling of a new building or office, it is often done by third party contractor. The technical personnel may not care about the real throughput and most of contractor only do the simple test by network cable tester to make sure that cable are well arranged and connected. However, problems always happen when the MIS start to deploy the network equipment inside the office. They may find that the cables are either unable to reach the Wirespeed transmission or lots of error packets are received during data transmission.

GIGATEST is an ideal LAN tester for testing and troubleshooting potential problems of data transmission and bandwidth in the field. GIGATEST works by pair with roles of Lord and Servant. Without extra standby personnel at the other test site, two GIGATEST negotiate with each other automatically, start bi–directional symmetric/asymmetric Wirespeed transmission, synchronize the test result and store result at Lord GIGATEST.

For installation of asymmetric transmission network such as ADSL that downstream speed is much faster than upstream speed, it is difficult to test the network by general loopback method that data transmission speeds between two sides must be the same. Unique Asymmetric Loop Test of GIGATEST LAN Tester is able to do customized speeds asymmetric transmission test that can verify the transmission quality of ADSL for ISP or Telecom Company.

With this affordable price and excellent functions for network probe and test on–site, GIGATEST LAN Tester is comprehensive solution for data transmission test in cable wiring phase or troubleshooting phase in the field.

• Wirespeed gigabit packet generator and analyzer for bi–directional symmetric and asymmetric transmission test

• Packet generation of short, long and random length packet by on-panel operation

• A pair of GIGATEST that serve as Servant and Lord for Bi–directional or Loopback transmission test

• Mesh Loop function test that forward test streams to up to five GIGATEST in mesh LAN

• Internet connectivity test by accessing and downloading file from internet

• Support Layer 1 and Layer 2 loopback

• Five customized test modes on rotary switch that can be configured by PC in advance and operated by on–panel button at test site

• Time based test by rotary time switch or packet counts based test via configuration of utility software

• User–defined packet loss criteria for loopback test to determine Pass/Fail

• Asymmetric network Test such as ADSL without complicate settings

• Powerful software application for advanced configuration/operation via USB cable

• Built–in rechargeable battery. Conduct tests on–site without extra power source

  KEY BENEFITS

• Connect PC is not required for operation of test procedure

• Test product or network easily without specific expertise

• Compact and ultra light Gigabit Ethernet test device

• Built–in rechargeable NI–MH battery for testing of Ethernet anywhere

• 10 pre–defined test patterns, and 5 user–defined patterns for instant testing or customized application

• Test Ethernet network by two GIGATEST that is located far away from each other

• Auto–negotiation along with bi-directional Symmetric/Asymmetric Wirespeed test or loopback test to measure the network

Model No.: 256852

Supported frame format: Ethernet II frame IEEE 802.3 frame

Interface:

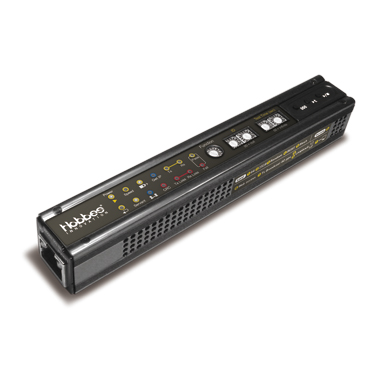

Left Side: • One 10/100/1000 Mbps UTP Ethernet port

Right Side: • One USB port (mini-USB connector) • One power switch

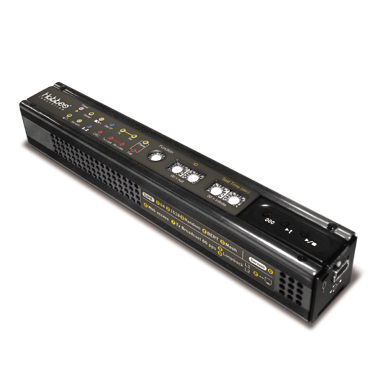

Bottom Side: • One set of 16 scales rotary switch for different function modes • Two sets of 16 scales rotary switch for ID control • Two sets of 16 scales rotary switch in second for control of test duration • One clear counter button (Icon: 000) • One broadcast test

Speed and Link Mode:

Auto Negotiation/Forced Mode : • 10/100 Mbps Half/Full Duplex • 1000 Mbps Full Duplex

Traffic Generation:

Transfer rate: • Wirespeed by test button on the device • Customized in Mbps via configuration of utility software • Asymmetric transfer rate by a pair of GIGATEST for ADSL test via configuration of utility software

Packet length:

Short packet length: 64 bytes by test button on the device

Long packet length: 1518 bytes by test button on the device

Specify fix length : 64 / 128 / 256 / 512 / 768 / 1024 / 1518 bytes by test button • Specify fix length 64/128/256/512/768/1024/1518 bytes via configuration of utility software

Payload in frame: • Random by default button • Selectable fix pattern, Byte increase, random or BERT via configuration of utility software

Time based test: • 0 to 255 seconds by rotary switch on the device or 00 on two rotary switches for infinite time till stop button is pressed • Input test time required via configuration of utility software

Packet based test: Customized by packets counts via configuration of utility software • Generate specified VLAN ID tagged packet • Generate specified Destination IP/Source IP packet

Traffic Receiving: • User-defined loss tolerance to identify Pass/Fail result of Loopback test • No packet loss to identify Pass/Fail result of general test

Test Result: Pass or Fail LED indicator and log to show the result of test

Test Mode: • Bi-directional Symmetric Loop Test from utility software • Bi-directional Asymmetric Loop Test from utility software • Packet Generation Test from utility software • User-defined test modes from A to E scales rotary switch • Test mode A to E can be chan

Function Mode by Rotary Switch (0 to F): • 0. Servant mode: Switch to Servant mode and accepts control from Lord • 1. Short Packet: Symmetrical and bi-directional short packets (64 bytes length) test with test result • 2. Long Packet: Same test as function 1 with long packets (1518 bytes length)

Software Support: GIGATEST is a GUI (graphic user interface) application software for GIGATEST, which is for controlling, configuration, counters data collecting and system upgrade of this machine.

Dimension: 141mm x 22mm x 22mm

Operating temp. : 0°C to 40°C (32°F to 104°F)

Storage temp. : 0°C to 50°C (32°F to 122°F)

Humidity: 0% to 85% RH

Test humidity: 0% to 85% RH

Power Source: Two built-in 3.7V NI-MH batteriesFrom USB cable via PC or external adapter
