- FIBERID

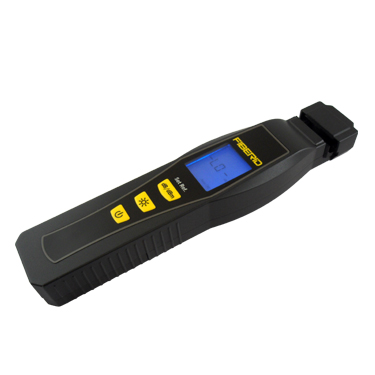

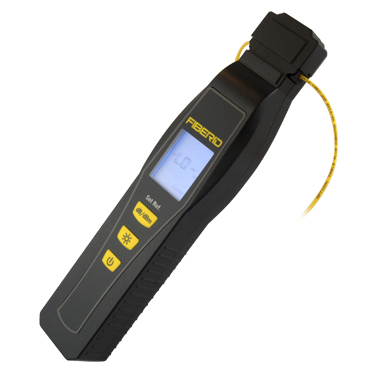

Optical Fiber Identifier
The FIBERID is a light–weight, rugged, easy–to–use installation and maintenance instrument designed for fast, accurate identification and traffic testing of optical signals without cutting the fiber cable or interrupting service.
Hobbes’ new FIBERID provides the functionalities required to detect and identify the direction of propagation of an in fiber signal to sensitivity level of –40dBm at 1550nm. The clever shielding design to diminish light leakage, and maintain the power value accuracy. FIBERID is designed for detect an active fiber, identify traffic direction, and measures the power transmitted through the fibers without disconnect it. Also, it uses a safe and reliable macro–bending technique that does not disrupt traffic, nor damage or overstress the fiber.

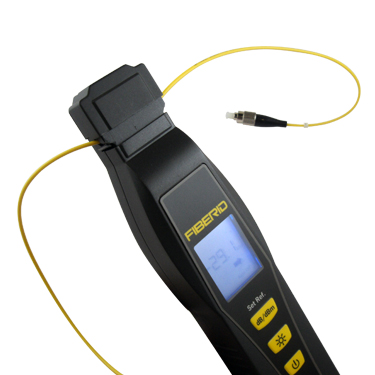

During installing, maintenance or troubleshooting fiber work system, the FIBERID often necessary to isolate a specific fiber from a bundle without disrupting service, by simple clamping the FIBERID onto a fiber, the unit will indicate if there is no signal at 270Hz, 1KHz, 2KHz, or traffic and show signal direction, it also can measures and displays fiber core power or relative power on the LCD display, when trace the fiber cables, it can detect the optical tones, which provide by any Hobbes’ item of OPTISource series,too. The FIBERID is simple and reliable to use with one hand, just need to operate with the battery, and will enhance the performance of your staff.
• Hand–held, lightweight, rugged, battery–powered
• High efficiency live fiber and dark fiber test tool
• It contains movable shielding design to diminish light leakage and maintain power value accuracy
• Fiber type: 8–10um, 250um, 900um, 2mm and 3mm
• Modulated tone for 270Hz, 1kHz and 2kHz and compatible with Hobbes’ OPTISource when trace Fiber cable • Bidirectional traffic detection
• Continuous signal power display
• With LCD display
• Low battery indication
Model No.: 258010
Wavelength: 800 to 1700nm
Fiber type: 8 to 10um, 250um, 900um, 2mm and 3mm
Display type: LCD
Tone recognition: 270Hz, 1kHz and 2kHz
Power range (dBm): 20 to –40 (1550nm)
Power measuring repeatability: ±1dB
Insertion loss: <1dB@1310nm, < 2.5dB@1550nm
Power measure unit: dBm, dB
Battery: 9V battery
Power consumption: Operating current is 9mA when backlight is off, operating current is 32mA when backlight is on
Operating temperature range: 0 ~ +50 ℃
Storage temperature range: -25 ~ +60 ℃
Relative humidity: 90%
Optical Fiber Identifier
Hobbes’ new FIBERID – Optical Fiber Identifier provides the functionalities required to detect and identify the direction of propagation of an in fiber signal to sensitivity level of –40dBm at 1550nm. The clever shielding design to diminish light leakage, and maintain the power value accuracy. FIBERID – Optical Fiber Identifier is designed for detect an active fiber, identify traffic direction, and measures the power transmitted through the fibers without disconnect it. Also, it uses a safe and reliable macro–bending technique that does not disrupt traffic, nor damage or overstress the fiber.
